C# 控制TSC打印机功能
- 零下一度 2023-4-3
public class PrinterHelper
{
/// <summary>
/// 更新线程
/// </summary>
Thread m_Thread;
/// <summary>
/// 线程阻塞
/// </summary>
AutoResetEvent m_ResetEvent = new AutoResetEvent(true);
/// <summary>
/// 是否工作
/// </summary>
bool m_ThreadIsWork = false;
/// <summary>
/// 是否阻塞
/// </summary>
bool m_ThreadIsPause = true;
/// <summary>
/// 服务器状态
/// </summary>
public delegate void PrinterStatusEventDelegate(int Status, string Message);
/// <summary>
/// 服务器状态
/// </summary>
public event PrinterStatusEventDelegate PrinterStatus;
/// <summary>
/// 打印机名称
/// </summary>
private static string m_PrinterName = string.Empty;
public PrinterHelper(string PrinterName)
{
m_PrinterName = PrinterName;
this.m_Thread = new Thread(new ThreadStart(this.WorkThreedFun));
this.m_Thread.IsBackground = true;
this.m_Thread.Start();
this.m_ThreadIsWork = true;
this.m_ThreadIsPause = false;
this.m_ResetEvent.Set();
}
[DllImport("TSCLIB.dll", EntryPoint = "about")]
public static extern int about();
[DllImport("TSCLIB.dll", EntryPoint = "openport")]
public static extern int openport(string printername);
[DllImport("TSCLIB.dll", EntryPoint = "barcode")]
public static extern int barcode(string x, string y, string type,
string height, string readable, string rotation,
string narrow, string wide, string code);
[DllImport("TSCLIB.dll", EntryPoint = "clearbuffer")]
public static extern int clearbuffer();
[DllImport("TSCLIB.dll", EntryPoint = "closeport")]
public static extern int closeport();
[DllImport("TSCLIB.dll", EntryPoint = "downloadpcx")]
public static extern int downloadpcx(string filename, string image_name);
[DllImport("TSCLIB.dll", EntryPoint = "formfeed")]
public static extern int formfeed();
[DllImport("TSCLIB.dll", EntryPoint = "nobackfeed")]
public static extern int nobackfeed();
[DllImport("TSCLIB.dll", EntryPoint = "printerfont")]
public static extern int printerfont(string x, string y, string fonttype,
string rotation, string xmul, string ymul,
string text);
[DllImport("TSCLIB.dll", EntryPoint = "printlabel")]
public static extern int printlabel(string set, string copy);
[DllImport("TSCLIB.dll", EntryPoint = "sendBinaryData")]
public static extern int sendBinaryData(byte[] content, int length);
//功能：繪製QRCODE二維條碼
//語法：
//QRCODE X, Y, ECC Level, cell width, mode, rotation, [model, mask,]"Data string”
//參數說明
//X QRCODE條碼左上角X座標
//Y QRCODE條碼左上角Y座標
//ECC level 錯誤糾正能力等級
//L 7%
//M 15%
//Q 25%
//H 30%
//cell width 1~10
//mode 自動生成編碼/手動生成編碼
//A Auto
//M Manual
//rotation 順時針旋轉角度
//0 不旋轉
//90 順時針旋轉90度
//180 順時針旋轉180度
//270 順時針旋轉270度
//model 條碼生成樣式
//1 (預設), 原始版本
//2 擴大版本
//mask 範圍：0~8，預設7
//Data string 條碼資料內容
//string printercommand = "QRCODE 176,8,Q,8,A,0,M2,S7,\"" + barCode + "\"";
[DllImport("TSCLIB.dll", EntryPoint = "sendcommand")]
public static extern int sendcommand(string printercommand);
/// <summary>
/// 宽度、高度、速度、浓度
// sensor为0：vertical 垂直间距距离 offset垂直间距的偏移
// sensor为1：vertical定义黑标高度和额外送出长度 offset黑标偏移量
/// </summary>
/// <param name="width"></param>
/// <param name="height"></param>
/// <param name="speed">列印速度，1~6，6为最快速度</param>
/// <param name="density">打印浓度，1-15，数字越大越黑</param>
/// <param name="sensor"></param>
/// <param name="vertical"></param>
/// <param name="offset"></param>
/// <returns></returns>
[DllImport("TSCLIB.dll", EntryPoint = "setup")]
public static extern int setup(string width, string height, string speed, string density, string sensor, string vertical, string offset);
/// <summary>
/// windowsfont(a,b,c,d,e,f,g,h)
/// 说明:使用Windows TTF字型列印文字
/// 参数:
/// a:整数型别，文字X方向起始点，以点(point)表示。
/// b:整数型别，文字Y方向起始点，以点(point)表示。
/// c:整数型别，字体高度，以点(point)表示。
/// d:整数型别，旋转角度，逆时钟方向旋转
/// 0 -> 0 degree
/// 90-> 90 degree
/// 180-> 180 degree
/// 270-> 270 degree
/// e:整数型别，字体外形
/// 0->标准(Normal)
/// 1->斜体(Italic)
/// 2->粗体(Bold)
/// 3->粗斜体(Bold and Italic)
/// f:整数型别,底线
/// 0->无底线
/// 1->加底线
/// g:字串型别，字体名称。如: Arial, Times new Roman,细名体,标楷体
/// h:字串型别，列印文字内容。
/// </summary>
/// <param name="x"></param>
/// <param name="y"></param>
/// <param name="fontheight"></param>
/// <param name="rotation"></param>
/// <param name="fontstyle"></param>
/// <param name="fontunderline"></param>
/// <param name="szFaceName"></param>
/// <param name="content"></param>
/// <returns></returns>
[DllImport("TSCLIB.dll", EntryPoint = "windowsfont")]
public static extern int windowsfont(int x, int y, int fontheight,
int rotation, int fontstyle, int fontunderline,
string szFaceName, string content);
/// <summary>
/// 获取打印机状态，
/// </summary>
/// <returns></returns>
/// 0=待机中
/// 1=印字头开启
/// 2=卡纸
/// 3
/// 4 =缺纸
/// 10= 暂停中
/// 20 =列印中
[DllImport("TSCLIB.dll", EntryPoint = "usbportqueryprinter")]
public static extern int usbportqueryprinter();
/// <summary>
/// 执行线程函数
/// </summary>
private void WorkThreedFun()
{
while (true)
{
if (this.m_ThreadIsPause || !this.m_ThreadIsWork)
{
this.m_ResetEvent.WaitOne();
}
System.Threading.Thread.Sleep(10);
this.DoWork();
}
}
private void DoWork()
{
//int i = openport(m_PrinterName);
int status = usbportqueryprinter();
string Hex = status.ToString("X6");
int rStatus = 14;
string strStatus = string.Empty;
switch (Hex)
{
case "000000":
rStatus = 0;
strStatus = "准备就绪";
break;
case "000001":
rStatus = 1;
strStatus = "打印头开启";
break;
case "000002":
rStatus = 2;
strStatus = "纸张卡纸";
break;
case "000003":
rStatus = 3;
strStatus = "打印头开启并且纸张卡纸";
break;
case "000004":
rStatus = 4;
strStatus = "纸张缺纸";
break;
case "000005":
rStatus = 5;
strStatus = "打印头开启并且纸张缺纸";
break;
case "000008":
rStatus = 6;
strStatus = "无碳带";
break;
case "000009":
rStatus = 7;
strStatus = "打印头开启并且无碳带";
break;
case "00000A":
rStatus = 8;
strStatus = "纸张卡纸并且无碳带";
break;
case "00000B":
rStatus = 9;
strStatus = "打印头开启、纸张卡纸并且无碳带";
break;
case "00000C":
rStatus = 10;
strStatus = "纸张缺纸并且无碳带";
break;
case "000010":
rStatus = 11;
strStatus = "暂停";
break;
case "000020":
rStatus = 12;
strStatus = "打印中";
break;
case "000080":
rStatus = 13;
strStatus = "其它错误";
break;
default:
rStatus = 14;
strStatus = "未知";
break;
}
this.PrinterStatus?.Invoke(rStatus, strStatus);
//System.Diagnostics.Debug.WriteLine(DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss fff") + "：" + status);
}
public static int SetCommand(string HexString)
{
int dvopenPort = openport(m_PrinterName);
byte[] bytes = HexStrToByte(HexString);
var r = sendBinaryData(bytes, bytes.Length);
closeport();
return r;
}
private static byte[] HexStrToByte(string HexString)
{
HexString = HexString.Replace(" ", "");
if (HexString.Length % 2 != 0)
{
HexString += " ";
}
byte[] returnBytes = new byte[HexString.Length / 2];
for (int i = 0; i < returnBytes.Length; i++)
{
returnBytes[i] = Convert.ToByte(HexString.Substring(i * 2, 2).Trim(), 16);
}
return returnBytes;
}
public static void TestPrint()
{
int dvopenPort = openport(m_PrinterName);
sendcommand("DIRECTION 1");
//设置标签大小 mm
sendcommand("SIZE 76mm" + ",130mm");
//设置打印速度 英寸每秒 1-10
sendcommand("SPEED 10");
//清除打印机缓存
clearbuffer();
//此条指令用来定义不同的国码编码。
string BarCode = "123456";
sendcommand("CODEPAGE UTF-8");
sendcommand("OFFSET 5mm");
sendcommand(string.Format("TEXT 140,50,\"SourceHa.TTF\",0,10,10,\"当前操作：打印测试页\""));
sendcommand("TEXT 80,100,\"SourceHa.TTF\",0,14,14,\"----------------------------------\"");
sendcommand("TEXT 120,160,\"SourceHa.TTF\",0,10,10,\"*********************\"");
sendcommand("TEXT 80,200,\"SourceHa.TTF\",0,14,14,\"----------------------------------\"");
sendcommand("TEXT 220,250,\"SourceHa.TTF\",0,13,13,\"菩萨蛮 温庭筠\"");
sendcommand("TEXT 200,300,\"SourceHa.TTF\",0,13,13,\"玉楼明月长相忆,\"");
sendcommand("TEXT 200,350,\"SourceHa.TTF\",0,13,13,\"柳丝袅娜春无力。\"");
sendcommand("TEXT 200,400,\"SourceHa.TTF\",0,13,13,\"门外草萋萋,\"");
sendcommand("TEXT 200,450,\"SourceHa.TTF\",0,13,13,\"送君闻马嘶。\"");
sendcommand("TEXT 200,500,\"SourceHa.TTF\",0,13,13,\"画罗金翡翠,\"");
sendcommand("TEXT 200,550,\"SourceHa.TTF\",0,13,13,\"香烛销成泪。\"");
sendcommand("TEXT 200,600,\"SourceHa.TTF\",0,13,13,\"花落子规啼,\"");
sendcommand("TEXT 200,650,\"SourceHa.TTF\",0,13,13,\"绿窗残梦迷。\"");
sendcommand("TEXT 120,700,\"SourceHa.TTF\",0,13,13,\"0001-0000-0010-0100\"");
sendcommand("TEXT 80,750,\"SourceHa.TTF\",0,14,14,\"----------------------------------\"");
barcode("180", "800", "128", "128", "1", "0", "2", "2", BarCode);
sendcommand("TEXT 80,900,\"SourceHa.TTF\",0,14,14,\"----------------------------------\"");
windowsfont(110, 950, 32, 0, 0, 0, "SourceHa.TTF", "测试打印时间" + DateTime.Now.ToString());
printlabel("1", "1");
closeport();
}
public static void AddJob(int index)
{
int dvopenPort = openport(m_PrinterName);
sendcommand("DIRECTION 1");
//设置标签大小 mm
sendcommand("SIZE 76mm" + ",130mm");
//设置打印速度 英寸每秒 1-10
sendcommand("SPEED 10");
//清除打印机缓存
clearbuffer();
//此条指令用来定义不同的国码编码。
string BarCode = "123456";
sendcommand("CODEPAGE UTF-8");
sendcommand("OFFSET 5mm");
sendcommand(string.Format("TEXT 140,50,\"SourceHa.TTF\",0,10,10,\"当前操作：打印测试页{0}\"", index));
sendcommand("TEXT 80,100,\"SourceHa.TTF\",0,14,14,\"----------------------------------\"");
sendcommand("TEXT 120,160,\"SourceHa.TTF\",0,10,10,\"*********************\"");
sendcommand("TEXT 80,200,\"SourceHa.TTF\",0,14,14,\"----------------------------------\"");
sendcommand("TEXT 220,250,\"SourceHa.TTF\",0,13,13,\"菩萨蛮 温庭筠\"");
sendcommand("TEXT 200,300,\"SourceHa.TTF\",0,13,13,\"玉楼明月长相忆,\"");
sendcommand("TEXT 200,350,\"SourceHa.TTF\",0,13,13,\"柳丝袅娜春无力。\"");
sendcommand("TEXT 200,400,\"SourceHa.TTF\",0,13,13,\"门外草萋萋,\"");
sendcommand("TEXT 200,450,\"SourceHa.TTF\",0,13,13,\"送君闻马嘶。\"");
sendcommand("TEXT 200,500,\"SourceHa.TTF\",0,13,13,\"画罗金翡翠,\"");
sendcommand("TEXT 200,550,\"SourceHa.TTF\",0,13,13,\"香烛销成泪。\"");
sendcommand("TEXT 200,600,\"SourceHa.TTF\",0,13,13,\"花落子规啼,\"");
sendcommand("TEXT 200,650,\"SourceHa.TTF\",0,13,13,\"绿窗残梦迷。\"");
sendcommand("TEXT 120,700,\"SourceHa.TTF\",0,13,13,\"0001-0000-0010-0100\"");
sendcommand("TEXT 80,750,\"SourceHa.TTF\",0,14,14,\"----------------------------------\"");
barcode("180", "800", "128", "128", "1", "0", "2", "2", BarCode);
sendcommand("TEXT 80,900,\"SourceHa.TTF\",0,14,14,\"----------------------------------\"");
windowsfont(110, 950, 32, 0, 0, 0, "SourceHa.TTF", "测试打印时间" + DateTime.Now.ToString());
printlabel("1", "1");
closeport();
}
}完成打印机指令控制打印机函数：
[DllImport("TSCLIB.dll", EntryPoint = "sendBinaryData")]
public static extern int sendBinaryData(byte[] content, int length);

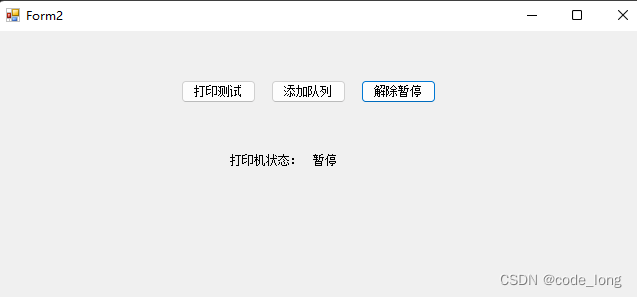

发送打印机指令
i.e <ESC>!P和<ESC>!O，分别暂停打印、取消暂停
注意<ESC>为跳脱符号，使用sendBinaryData发送指令接受的为byte[]数据类型
代码参考：
string Hex = "1B 21 50"; //<ESC>!P暂停
string Hex = "1B 21 4F"; //<ESC>!O解除暂停
byte[] sendBytes = HexStrToByte(Hex);
var r = sendBinaryData(sendBytes, sendBytes.Length);
许多朋友使用的是sendcommand函数，是只能发送命令，而不能发送指令内容！！！
sendcommand 支持TSC文档：系统指令、标签内容打印命令、设备配置指令等
sendBinaryData支持TSC文档：状态获取及立即指令、信息传送、驱动指令、文件管理指令、基础指令及函数等
TSC包含命令与指令，文档有很明确的说明。
|
|---|
